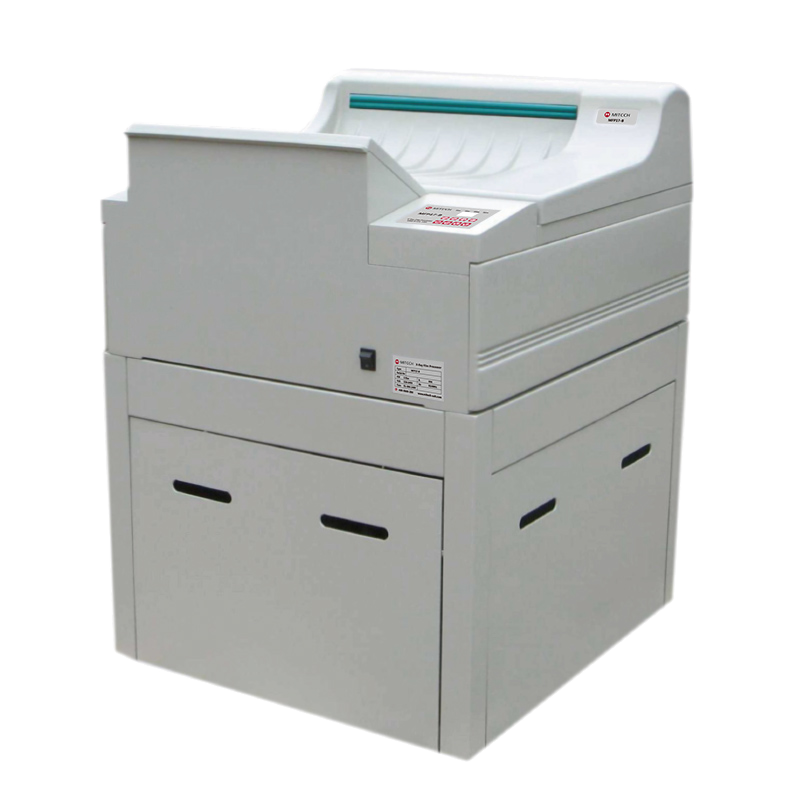

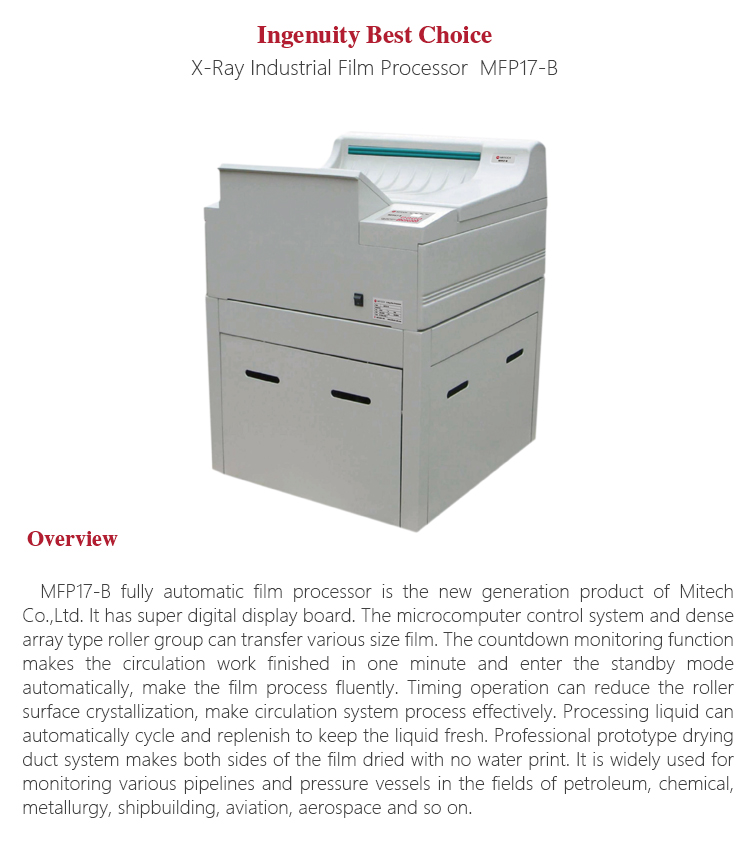

MFP17-B fully automatic film processor is the new generation product of Mitech Co.,Ltd. It has super digital display board, the microcomputer control system and dense array type roller group can transfer various size film. The countdown monitoring function makes the circulation work finished in one minute and enter the standby mode automatically. Processing liquid can automatically cycle and replenish to keep the liquid fresh. Professional prototype drying duct system makes both sides of the film dried with no water print. It is widely used for monitoring various pipelines and pressure vessels in the fields of petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and so on.

Aerospace

Military Railway

Shipbuilding Industry

Mining Inspection

Pressure Vessel, Pipeline

Oilfield Power Plant

Film process mainly by developing, fixing, washing and drying. The film needs to be placed in the developer tank that with liquid for a period of time, then in the fixer tank for a period of time. After that, put it in wash tank, then dry it to complete the film process.

The four processes have high requirements for the temperature, time and liquid concentrations in developer and fixer. Film process has four modes, cold, preheating, wash, and self-inspection. Under cold mode, system is on electricity but not work. Under preheating mode ,working area starts to heat to certain temperature without film. When the film enters in, temperature goes up rapidly to wash film. Wash mode means film is under washing. Under self-inspection, it can check whether each component is working normally.

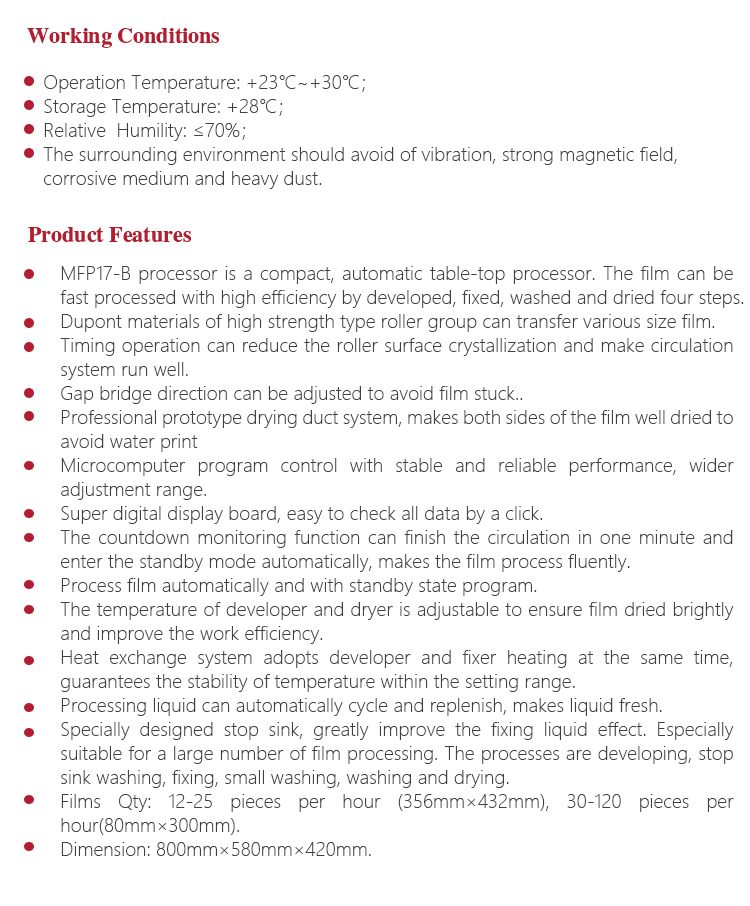

Operation Temperature：+23℃~+30℃；

Storage Temperature ：+28℃

Relative  Humidity ：≤70%；

The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust

Dupont materials of high strength type roller group can transfer various size film.

Timing operation can reduce the roller surface crystallization and make circulation system run well.

Gap bridge direction can be adjusted to avoid film stuck.

Professional prototype drying duct system, makes both sides of the film well dried to avoid water print.

Microcomputer program control with stable and reliable performance, wider adjustment range.

Super digital display board, easy to check all data by a click.

The countdown monitoring function can finish the circulation in one minute and enter the standby mode automatically, makes the film process fluently.

Process film automatically and with standby state program.

The temperature of developer and dryer is adjustable to ensure film dried and brightly and improve the work efficiency.

Heat exchange system adopts developer and fixer heating at the same time, guarantees the stability of temperature within the setting range.

Processing liquid can automatically cycle and replenish, makes liquids fresh.

Apply to medium wash volume, especially suitable for pipeline detection episodes, roil film users.

Specially designed stop sink, greatly improve the fixing liquid effect. Especially suitable for a large number of film processing. The processes are developing, stop sink washing, fixing, small washing, washing and drying.

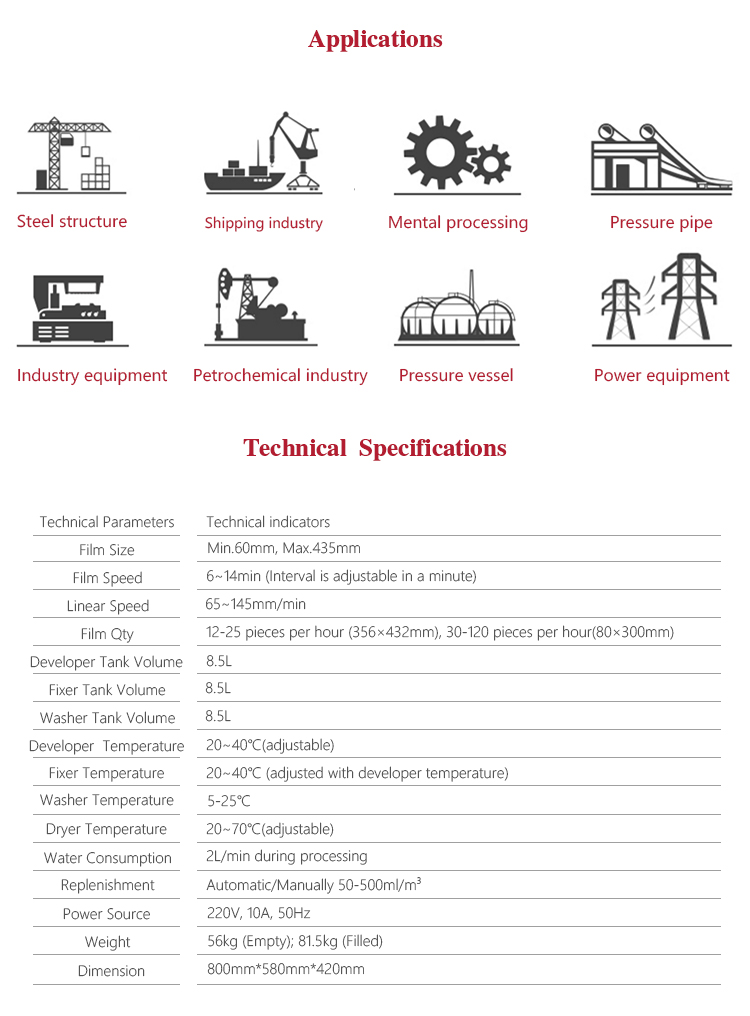

Films Qty: 12-25 pieces per hour (356mm×432mm), 30-120 pieces per hour(80mm×300mm).

Dimensions: 800mm×580mm×420mm

① Before switching the processor on, close the water drainage stop cock and open the freshwater

② tap. When working has finished for the day. It is essential that the freshwater tap is turned off again and by opening the water-drainage stop cock the water drained out of the processor.

③ Switch the power on, The water tank filled and the ventilator fan feeds fresh air in. The

④ developer and fixer baths heat up. When the required temperature is reached, the LED bath heater blinks.

⑤ Open light protection cover. Place film on left side of feed tray and feed in.

⑥ The film switch starts the transport and the replenishment. The overlapping safety device LED

⑦ lights up.

⑧ Indicator on

⑨ Developing and Fixing

⑩ Washing

? Drying

Film completed

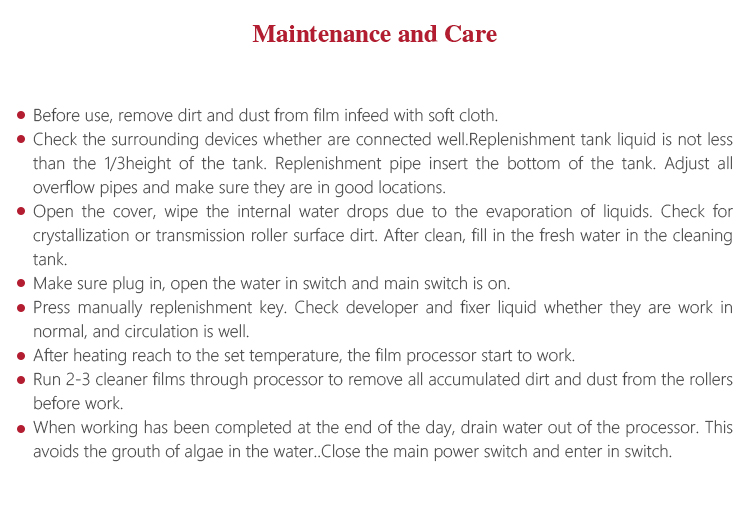

Before use, remove dirt and dust from film infeed with soft cloth

Check the surrounding devices whether are connected well. Replenishment tank liquid should not less than the 1/3height of the tank. Replenishment pipe insert the bottom of the tank. Adjust all overflow pipes and make sure they are in good locations.

Open the cover, wipe the internal water drops due to the evaporation of liquids. Check for crystallization or transmission roller surface dirt. After clean, fill in the fresh water in the cleaning tank.

Make sure plug in, open the water in switch and main switch is on.

Press manually replenishment key. Check developer and fixer liquid whether they are work in normal, and circulation is well.

After heating to the set temperature, the film processor can start to work.

Run 2-3 cleaner films through processor to remove all accumulated dirt and dust from the rollers before work..

When working has been completed at the end of the day, drain water out of the processor. This avoids the growth of algae in the water. Close the main power switch and open the ventilation device.
