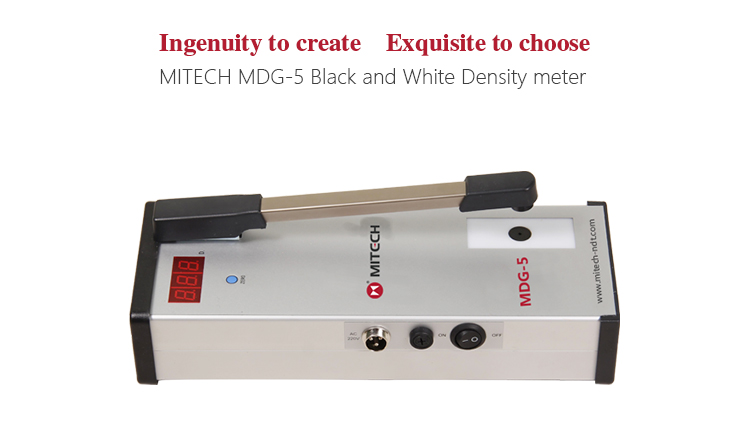

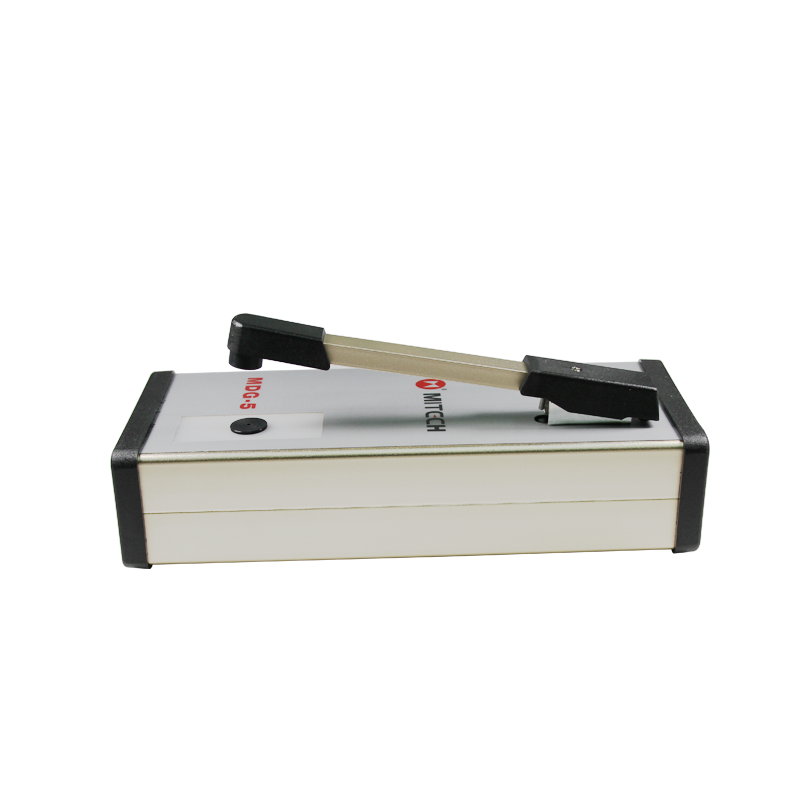

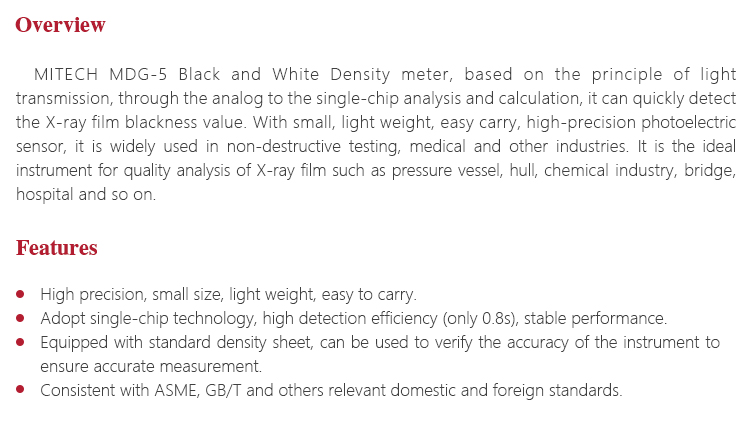

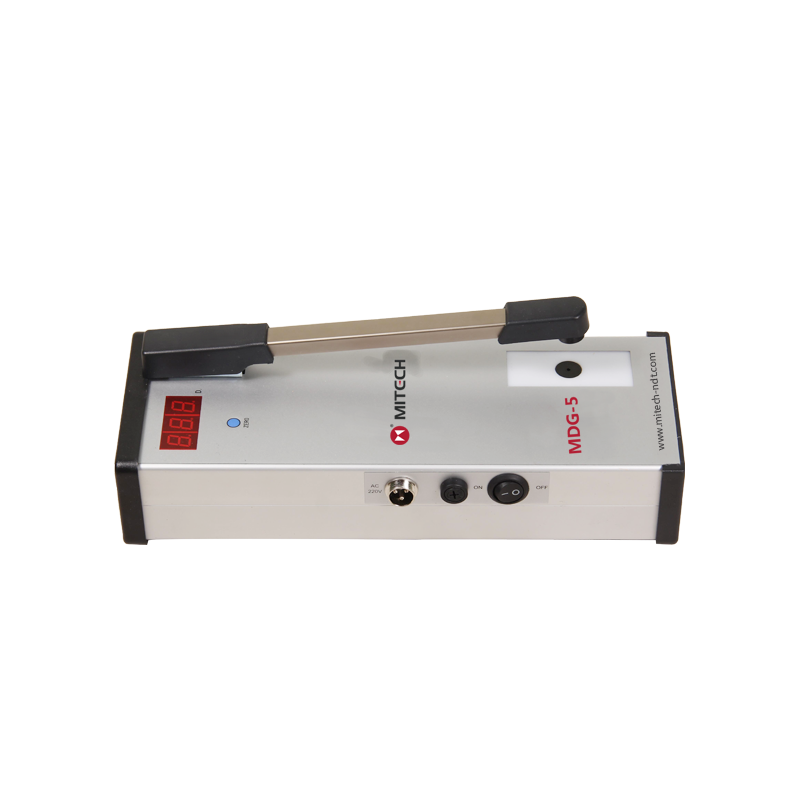

Product OverviewMITECH MDG-5 Black and White Density meter, based on the principle of light transmission, through the analog to the single-chip analysis and calculation, it can quickly detect the X-ray film blackness value. With small, light weight, easy carry, high-precision photoelectric sensor, it is widely used in non-destructive testing, medical and other industries. It is the ideal instrument for quality analysis of X-ray film such as pressure vessel, hull, chemical industry, bridge, hospital and so on.
Function & applicationWidely used in pressure vessels, hull, chemical, bridges, hospitals and other X-ray quality analysis.

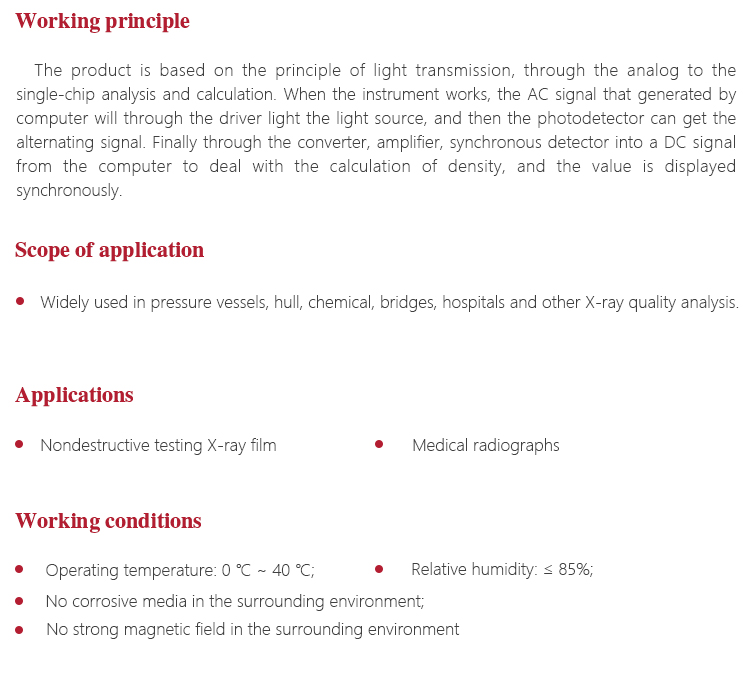

Working PrincipleThe product is based on the principle of light transmission, through the analog to the single-chip analysis and calculation. When the instrument works, the AC signal that generated by computer will through the driver light the light source, and then the photodetector can get the alternating signal. Finally through the converter, amplifier, synchronous detector into a DC signal from the computer to deal with the calculation of density, And the value is displayed synchronously.
Working Conditionsl Operating temperature: 0 ℃ ~ 40 ℃;
l Relative humidity: ≤ 85%;
l No corrosive media in the surrounding environment;
l No strong magnetic field in the surrounding environment
Instrument Featuresl High precision, small size, light weight, easy to carry.
l Adopt single-chip technology, high detection efficiency (only 0.8s), stable performance.
l Equipped with standard density sheet, can be used to verify the accuracy of the instrument to ensure accurate
measurement.
l Consistent with ASME, GB/T and others relevant domestic and foreign standards.

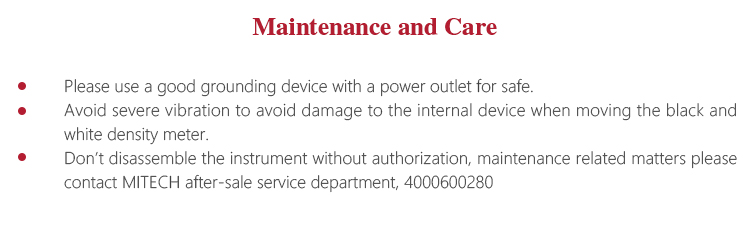

Operating Method and AttentionsInstrument Maintenancel Please use a good grounding device with a power outlet for safe.
l Avoid severe vibration to avoid damage to the internal device when moving the black and white density meter.
l Don’t disassemble the instrument without authorization, maintenance related matters please contact MITECH after-sale
service department, 4000600280
-
-

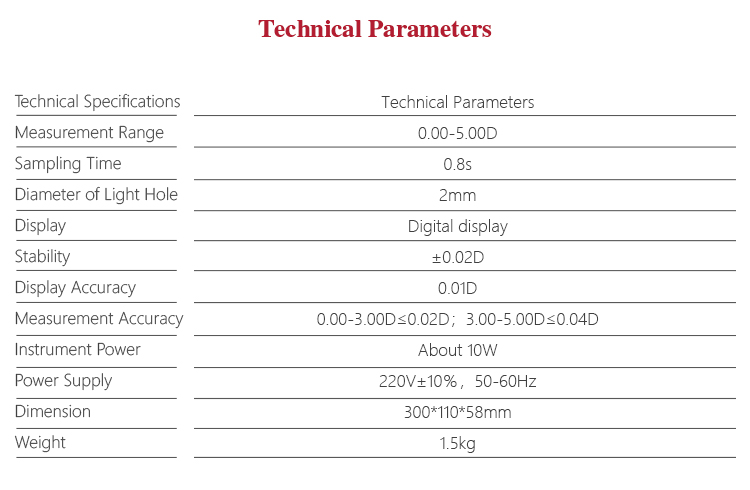

Technical Specifications Technical Parameters Measurement Range 0.00-5.00D Sampling Time 0.8s Diameter of Light Hole 2mm Display Digital display Stability ±0.02D Display Accuracy 0.01D Measurement Accuracy 0.00-3.00D≤0.02D；3.00-5.00D≤0.04D Instrument Power About 10W Power Supply 220V±10％，50-60Hz Dimension 300*110*58mm Weight 1.5kg -
-
