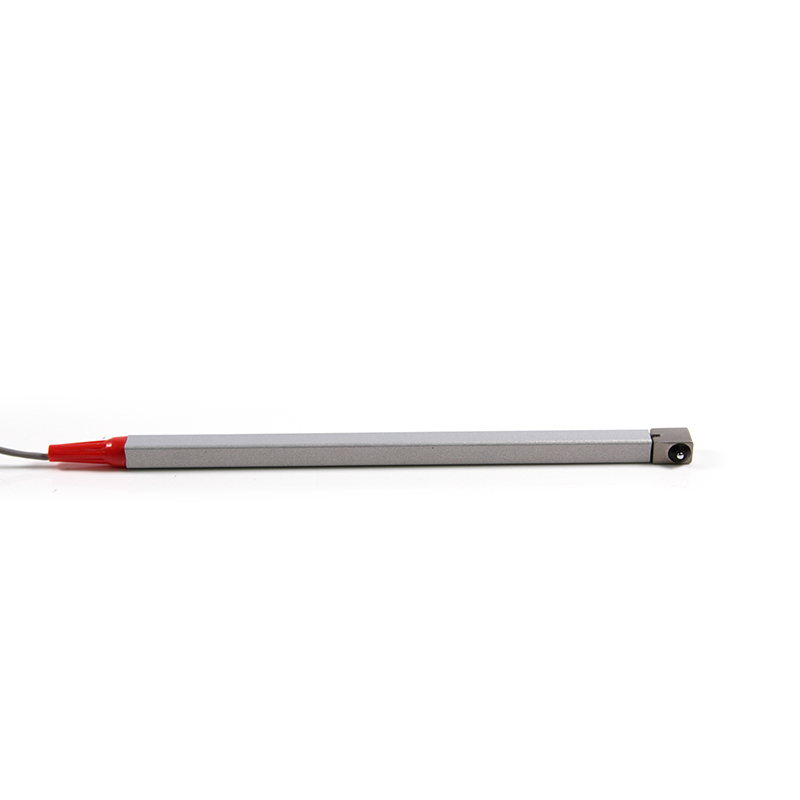

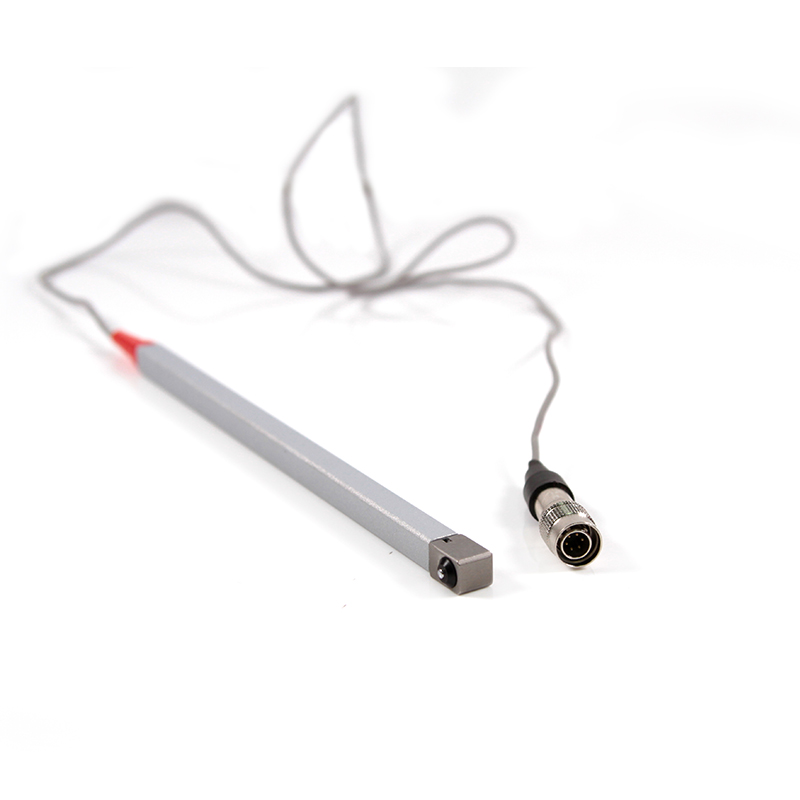

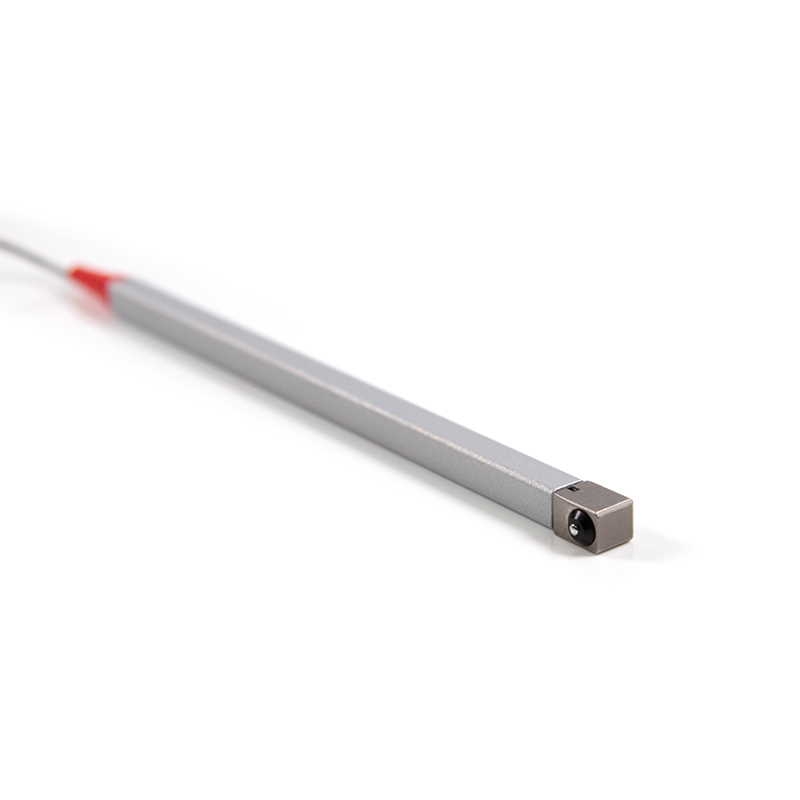

Ferrous probe F1/90°
F1/90°probe works on the magnetic induction principle and should be used for non-magnetic coatings such as aluminum, chrome, copper, zinc, paint and varnish, enamel, rubber etc., on an iron or steel substrate.
F1/90°probe is optional config.
Measuring range (um):0-1250μm;
Min curvature of the min area(mm):1.5mm;
Diameter of the min area (mm): Φ7;
Critical thickness of substrate (mm):0.5mm;
Probe cable length: 90cm;
It is plated with hard chrome, durable, not easy to wear;
The error caused by the probe is small, the measured value is accurate;
F1 probe is made of metal which can effectively protect the probe, corrosion-resistant and vibration-proof, durable;
It is widely used to measure the thickness of non-magnetic coatings such as copper plating, rubber layer and paint layer on the magnetic metal materials such as iron and steel.
In the manufacturing and metal processing industry, chemical industry, commodity inspection and other detection areas and material protection in the professional scientific research, it is necessary precision instrument.
F1/90°probe is optional config.
Measuring range (um):0-1250μm;
Min curvature of the min area(mm):1.5mm;
Diameter of the min area (mm): Φ7;
Critical thickness of substrate (mm):0.5mm;
Probe cable length: 90cm;
It is plated with hard chrome, durable, not easy to wear;
The error caused by the probe is small, the measured value is accurate;
F1 probe is made of metal which can effectively protect the probe, corrosion-resistant and vibration-proof, durable;
It is widely used to measure the thickness of non-magnetic coatings such as copper plating, rubber layer and paint layer on the magnetic metal materials such as iron and steel.
In the manufacturing and metal processing industry, chemical industry, commodity inspection and other detection areas and material protection in the professional scientific research, it is necessary precision instrument.
Adaptive Products
-

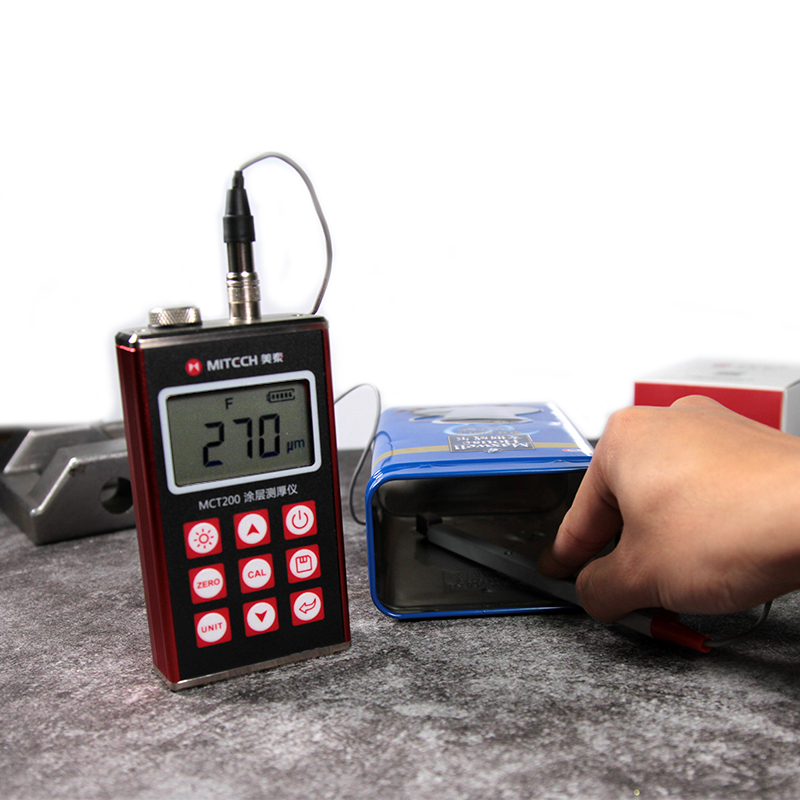

MCT200 Coating Thickness Gauge
×
